Mixed sheet and tube shops
Supports nested flat sheet and plate work where cut quality, safety, and repeatable throughput matter.
Combo Sheet & Tube Laser Cutting Machine
Machine highlights
1
Plate and tube dual-mode cutting
2
Four working area options
3
0.002 in positioning accuracy
Applications
1
Mixed sheet and tube shops
2
Fabrication startups
3
Space-sensitive production floors
Dual-Use Sheet Tube Fiber Laser Cutting Machine
Best for shops that need both sheet cutting and tube processing on one machine footprint.
Dual-Use Sheet Tube Fiber Laser Cutting Machine
Plate and tube dual-mode cuttingFour working area options0.002 in positioning accuracyU.S. support
4 size optionsWorking Area
0.002" (0.05mm)Positioning Accuracy
+/-0.0012in (+/-0.03 mm)Repositioning Accuracy
Model and laser power directionShare material, thickness, working area, and production volume so the quote can match power, table size, and options to your shop.
U.S. Technical SupportU.S. response supportFree test cuts welcome
Applications
Where this machine creates value.
Fabrication startups
LF-BT can be configured around this workflow during quotation, including material, thickness, power, and handling needs.
Space-sensitive production floors
Helps production line buyers reduce manual handling and keep cutting output predictable across shifts.
Service & support
Support before and after the machine arrives.
LUMINARY LASER keeps the buying process focused on machine fit, installation readiness, training, and responsive technical communication.
Installation support
Machine setup guidance for site preparation, commissioning, and workflow handoff.
Training support
Operator onboarding for cutting workflow, machine operation, and daily care.
U.S. parts planning
Parts planning and service coordination for most U.S. regions, handled through the Houston office.
Remote diagnostics
Technical communication and troubleshooting support for production questions.
Technical specifications
LF-BT parameters
| Working Area | 5' x 10' / 13' x 6.5' / 20' x 5' / 20' x 8' |
|---|---|
| Metric Working Area | 1500*3000mm / 4000*2000mm / 6000*1500mm / 6000*2500mm |
| Positioning Accuracy | 0.002" (0.05mm) |
| Repositioning Accuracy | +/-0.0012in (+/-0.03 mm) |
| Upgrade | Air Conditioner, Smoke Purifier, Air Compressor, Voltage Regulator, Safety Light Curtain |
Product video
Watch LF-BT video.
Machine details
Machine detail highlights
High-Precision 3D Laser Cutting Head
Luminary's machine employs a Raytools/WSX 3D

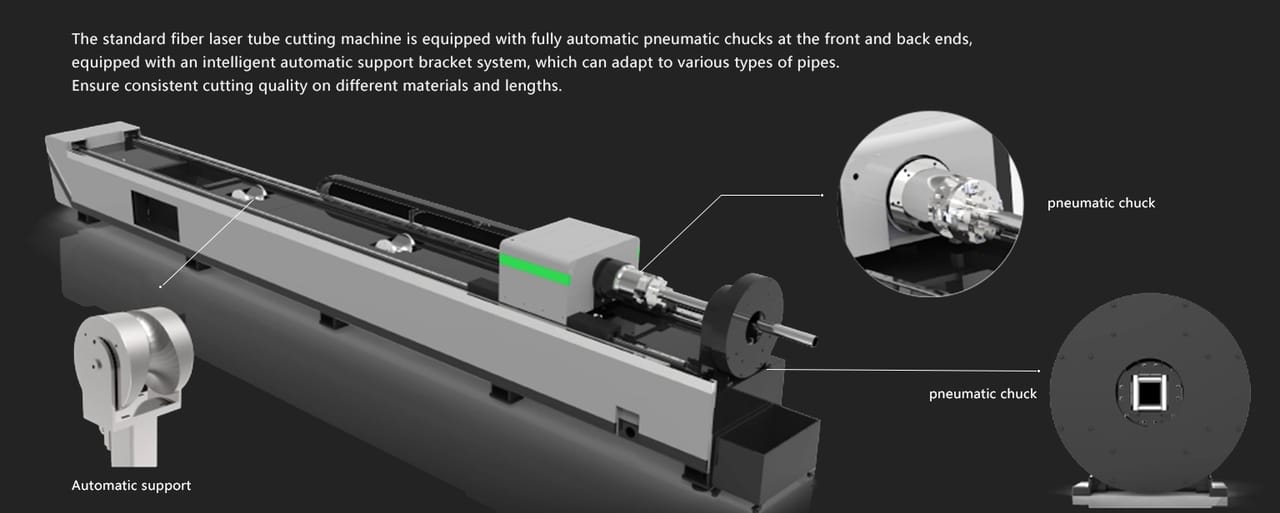

Advanced Pneumatic Chuck
The pneumatic chuck in Luminary's Small Pipe Cutting Machine utilizes an internal rack and pinion drive for improved accuracy.It forms the centerpiece of the machine, ensuring a secure.
Double Pneumatic Chucks, Ultra-short Tailing
The front and rear of Pipe Fiber Laser Cutting Machine chucks are featured by automatic centering and dual-driven rotation, keeping them synchronous. The front chuck is full-stroke, and cutting tailing is further shortened to 50mm by front chuck avoidance cutting.
Product details

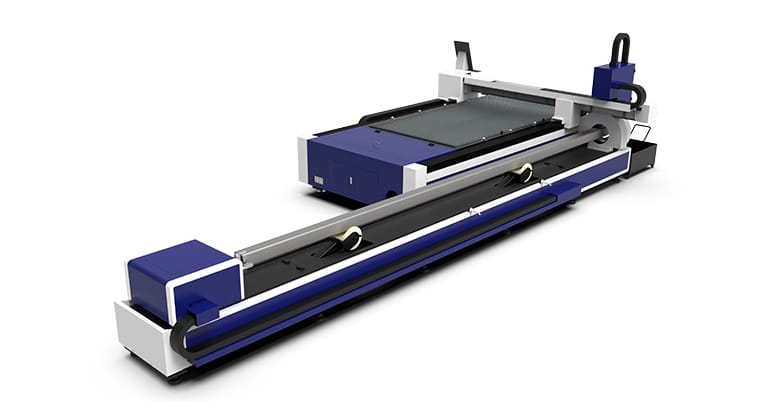

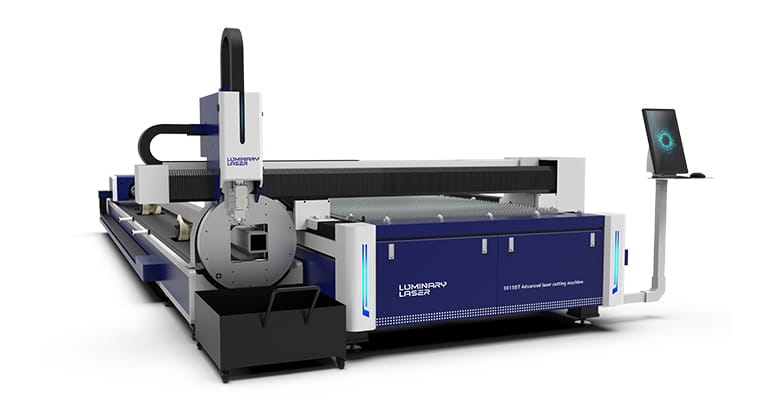

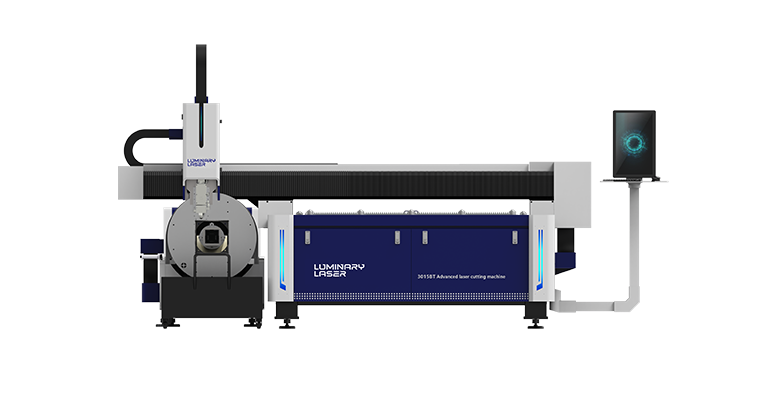

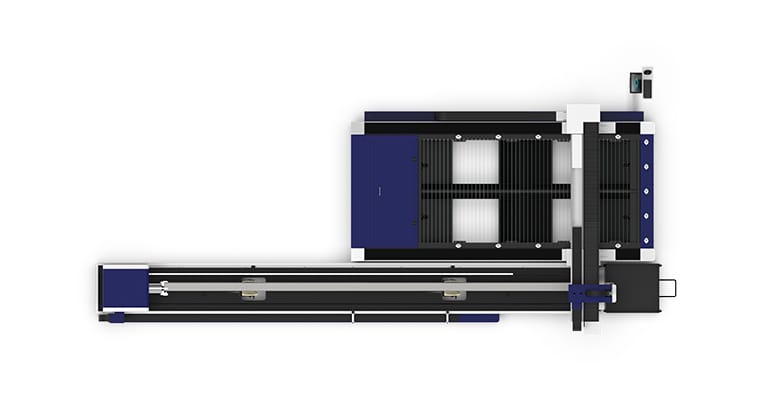

LF-BT machine views
Process and detail banners
LF-BT production views
FAQs
LF-BT Dual-Use Sheet Tube Fiber Laser Cutting Machine FAQs
How do I know whether LF-BT is the right machine for my shop?
Share your material, thickness, part size, production volume, and loading needs. The LUMINARY LASER team can help match LF-BT with the right power, table size, and configuration before quotation.
What should I prepare before requesting a quote?
Prepare typical material types, thickness range, target part size, expected daily output, available floor space, power requirements, and installation location. These details help make the quote more accurate.
Do you support installation and operator training in the United States?
Yes. LUMINARY LASER coordinates installation planning, startup support, operator training, parts planning, and technical communication for buyers across most U.S. regions through the Houston office.
Can I discuss power, gas, and configuration before ordering?
Yes. Before purchase, you can discuss laser power, assist gas, table size, loading options, beveling needs, and service planning so the machine configuration matches your production workflow.
