Composite tube cutting
Supports tube and profile jobs that need accurate cuts before welding, assembly, or finishing.
Tube Laser Cutting Machine
Machine highlights
1
3000W to 6000W laser power
2
1.5G maximum acceleration
3

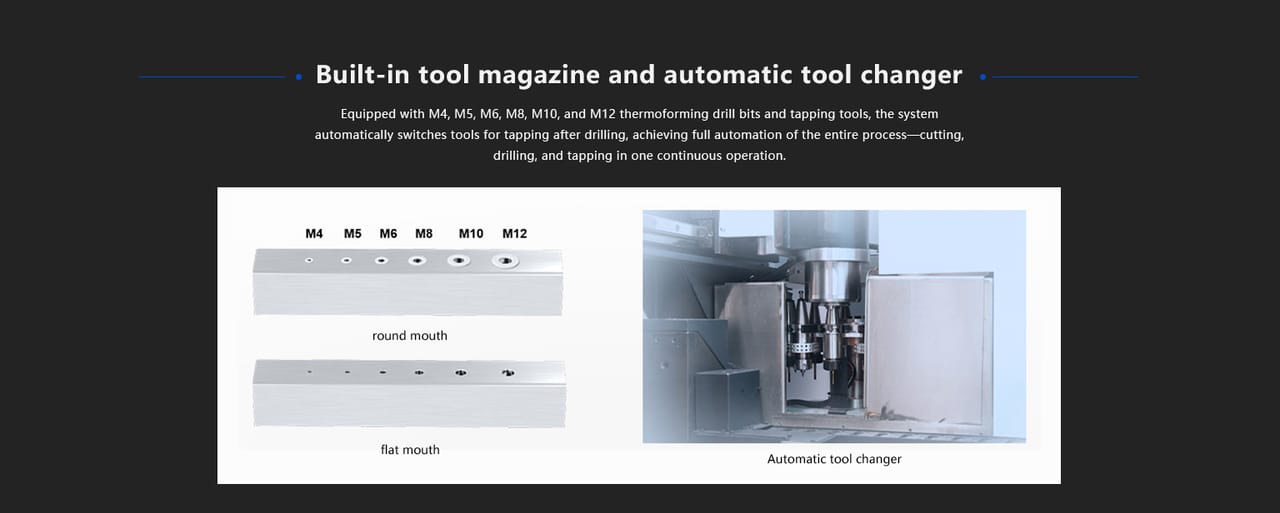

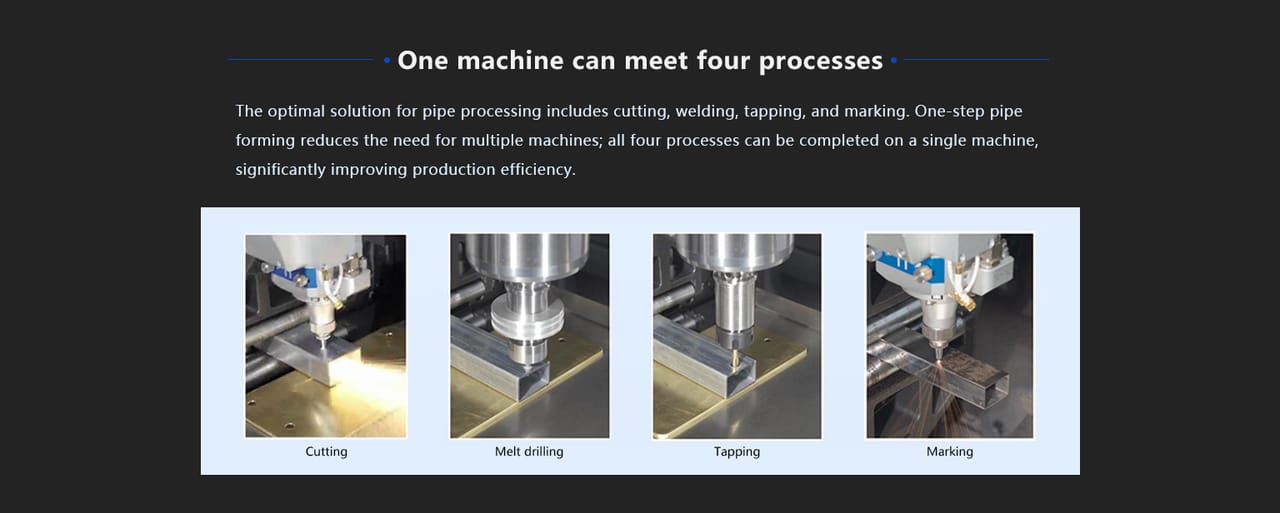

Integrated cutting, drilling, tapping, and marking
Applications
1
Composite tube cutting
2
Production tube processing
3
Industrial tube components

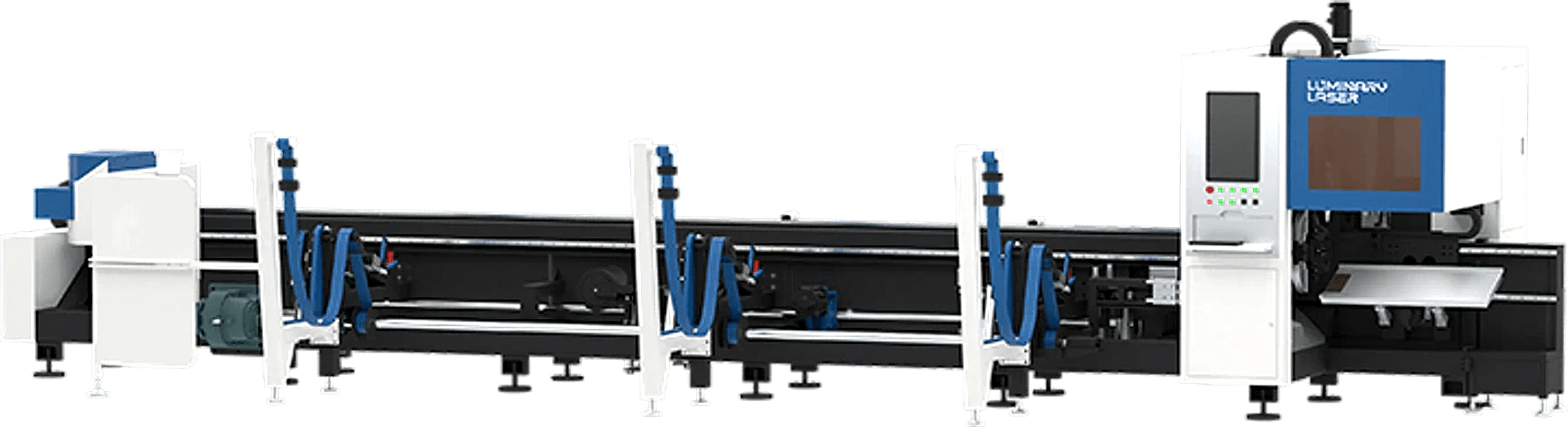

Laser Composite Tube Cutting Machine
Best for round, square, rectangular, and shaped tube production with cleaner downstream fit-up.
Laser Composite Tube Cutting Machine
3000W to 6000W laser power1.5G accelerationIntegrated cutting, drilling, tapping, and marking
3 kW-6 kWLaser Power Supply
1.5GMaximum Acceleration
Model and laser power directionShare material, thickness, working area, and production volume so the quote can match power, table size, and options to your shop.
U.S. Technical SupportU.S. response supportFree test cuts welcome
Applications
Where this machine creates value.
Production tube processing
Helps production line buyers reduce manual handling and keep cutting output predictable across shifts.
Industrial tube components
Supports tube and profile jobs that need accurate cuts before welding, assembly, or finishing.
Service & support
Support before and after the machine arrives.
LUMINARY LASER keeps the buying process focused on machine fit, installation readiness, training, and responsive technical communication.
Installation support
Machine setup guidance for site preparation, commissioning, and workflow handoff.
Training support
Operator onboarding for cutting workflow, machine operation, and daily care.
U.S. parts planning
Parts planning and service coordination for most U.S. regions, handled through the Houston office.
Remote diagnostics
Technical communication and troubleshooting support for production questions.
Technical specifications
D16 parameters
| Laser Power Supply | 3000w-6000w |
|---|---|
| Maximum Acceleration | 1.5G |
| Voltage | 380V 3PH 50/60HZ |
Product video
Watch D16 video.
Machine details
Machine detail highlights
High-Precision 3D Laser Cutting Head
Luminary's machine employs a Raytools/WSX 3D
Advanced Pneumatic Chuck
The pneumatic chuck in Luminary's Small Pipe Cutting Machine utilizes an internal rack and pinion drive for improved accuracy.It forms the centerpiece of the machine, ensuring a secure.

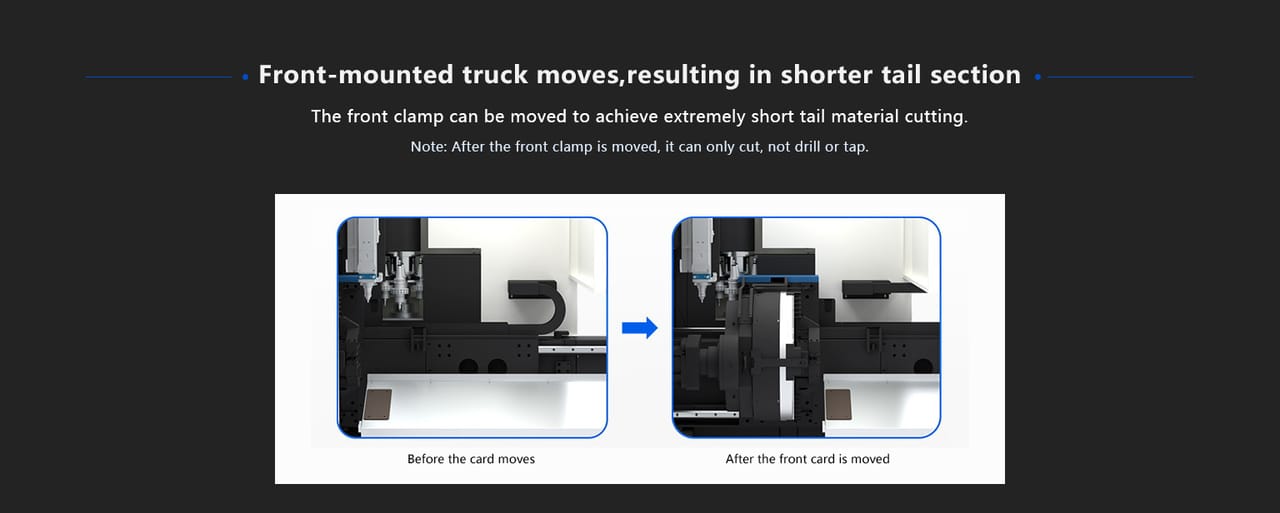

Double Pneumatic Chucks, Ultra-short Tailing
The front and rear of Pipe Fiber Laser Cutting Machine chucks are featured by automatic centering and dual-driven rotation, keeping them synchronous. The front chuck is full-stroke, and cutting tailing is further shortened to 50mm by front chuck avoidance cutting.
Product details

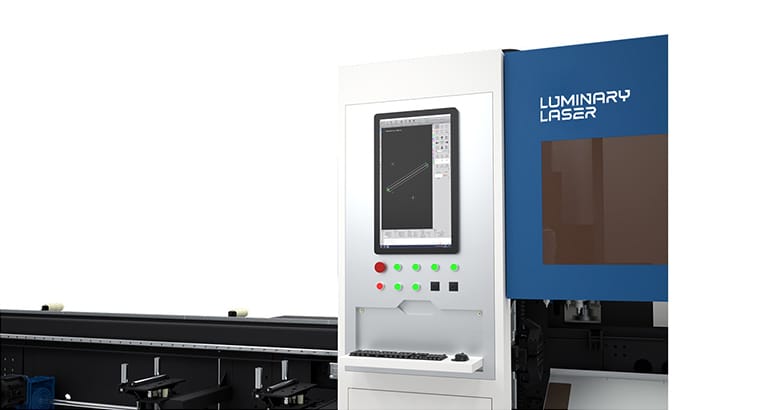

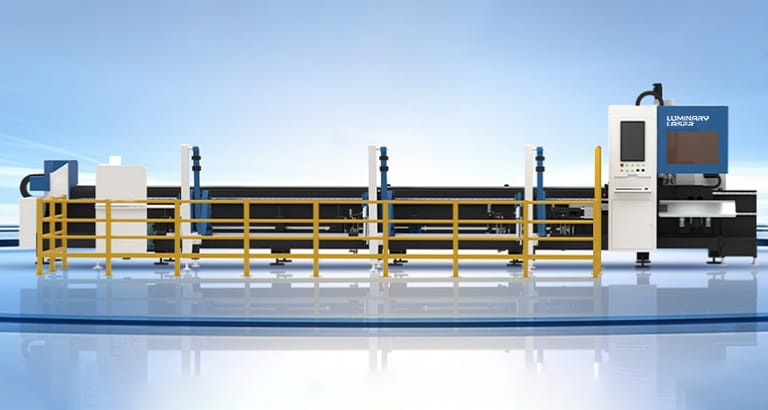

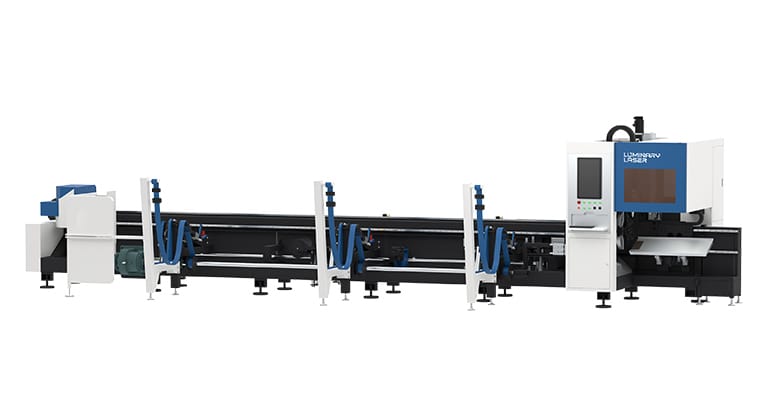

D16 machine views
Process and detail banners
D16 production views
FAQs
D16 Laser Composite Tube Cutting Machine FAQs
How do I know whether D16 is the right machine for my shop?
Share your material, thickness, part size, production volume, and loading needs. The LUMINARY LASER team can help match D16 with the right power, table size, and configuration before quotation.
What should I prepare before requesting a quote?
Prepare typical material types, thickness range, target part size, expected daily output, available floor space, power requirements, and installation location. These details help make the quote more accurate.
Do you support installation and operator training in the United States?
Yes. LUMINARY LASER coordinates installation planning, startup support, operator training, parts planning, and technical communication for buyers across most U.S. regions through the Houston office.
Can I discuss power, gas, and configuration before ordering?
Yes. Before purchase, you can discuss laser power, assist gas, table size, loading options, beveling needs, and service planning so the machine configuration matches your production workflow.
